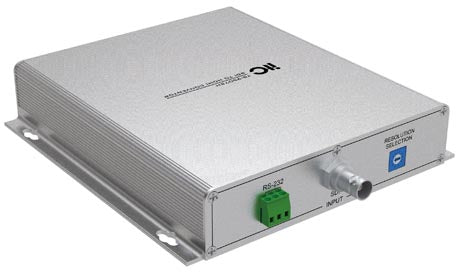

TS-9507SH HD Signal Converter
TS-9507SH HD Signal Converter
Regular price
RM0.00 MYR
Regular price
Sale price
RM0.00 MYR
Unit price
per
Couldn't load pickup availability
Description:
The TS-9507SH is made to convert HD-SDI, 3G-SDI, and SD-SDI single-channel digital component serial interface signals into HDMI signals. It includes an HDMI modulator and SDI receiver that can quickly convert SDI signals into HDMI signals. To achieve synchronised transmission of sound and image, the SDI audio stream is split and turned into an HDMI signal at the same time. In order to connect the high definition camera to the display terminal with an HDMI interface, the single digital component serial interface (SDI) signal must be converted into a TMDS signal.
The TS-9507SH is made to convert HD-SDI, 3G-SDI, and SD-SDI single-channel digital component serial interface signals into HDMI signals. It includes an HDMI modulator and SDI receiver that can quickly convert SDI signals into HDMI signals. To achieve synchronised transmission of sound and image, the SDI audio stream is split and turned into an HDMI signal at the same time. In order to connect the high definition camera to the display terminal with an HDMI interface, the single digital component serial interface (SDI) signal must be converted into a TMDS signal.
