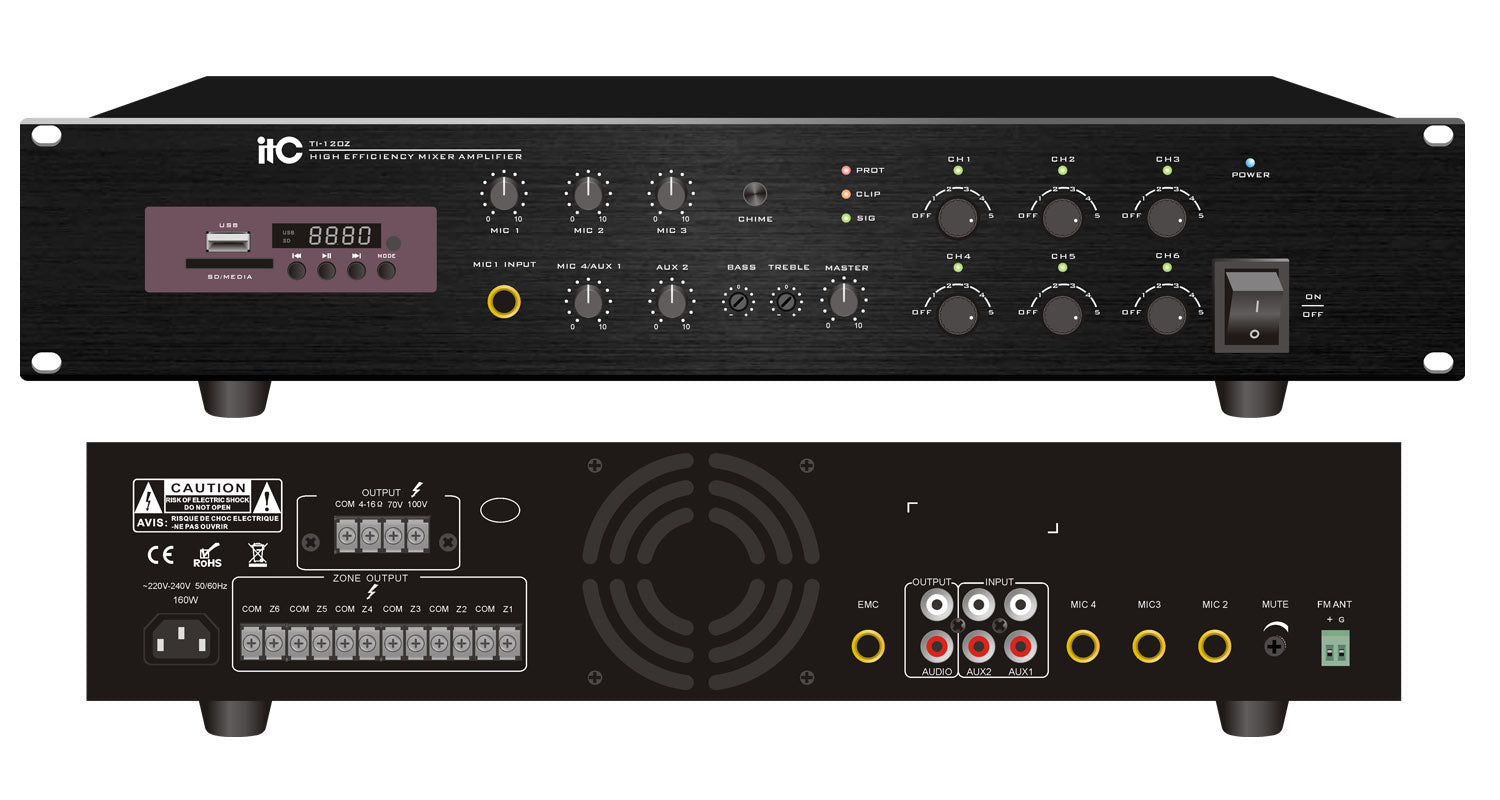

TI-120Z TI-240Z TI-350Z TI-500Z Six-zone Mixer Digital Power Amplifier With Audio Source

Description:

• Mixer power amplifier with mp3/TUNER/Bluetooth.
• Ideal for small and medium-sized indoor and outdoor background music playing venues such as small & medium supermarkets, malls, leisure cafes and so on.

Features:

• Standard cabinet design (1U) with delicate SMT process design.
• With mp3/TUNER/Bluetooth module, the digital screen displays the tracks currently played by USB.
• With mp3/TUNER/Bluetooth remote control function.
• 1 EMC input, 2 AUX inputs, 4 MIC inputs.
• Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
• Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
• With level, overload and protection indicator.
• The device has good self-protection performance such as short circuit, overload and overheat.
• Output mode: Constant voltage output 100V, 70V, 4-16Ω.
• 6 zones independent volume adjustment selection function.
• EMC input can automatically open the zone function.
• High-efficiency energy-saving switching power supply is perfectly combined with high-energy, energy-saving and ultra-stable design of Class D digital power amplifiers.
• Wide voltage supply: Can work normally in 180V-240V .
• 24V standby power supply can be switched without delay. Optional.

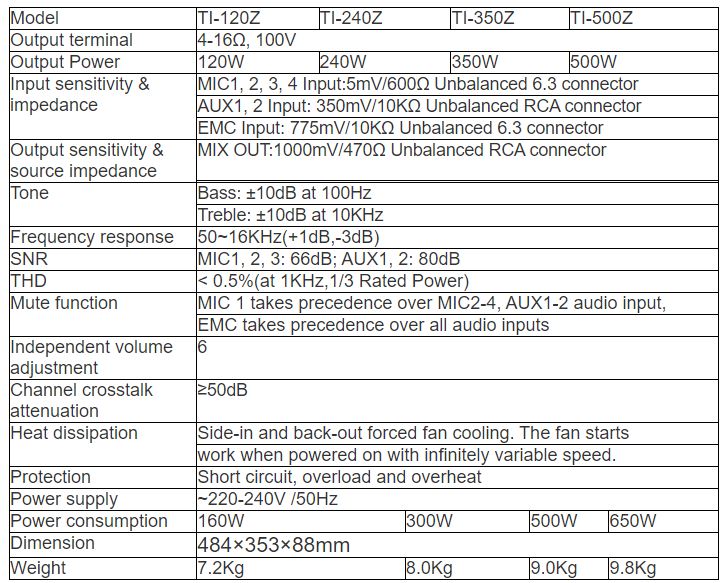

Specifications:
