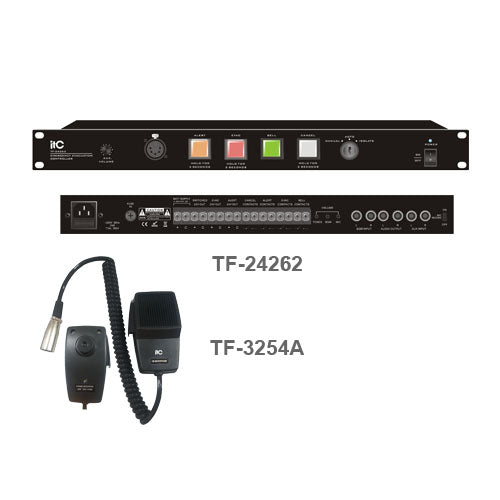

TF-3254A, TF-24262 Emergency Evacuation Controller

Description：
The controller is simple to install and has key switch selectable Auto, Manual, and Isolate modes. The Fire Indicator Board (FIB) of the building will send any signal to the panel when it is set to the Auto position, which activates the alarm tone. The panel will switch to the evacuation mode once a predetermined time has passed without being attended to. Up until the panel is reset, the evacuation tone will keep playing. Any of the functions may be started from the front panel controls when the position is manual.

As a result, the unit is isolated and the alert, evacuation, and bell tones are not activated. BGM source playback through the controller has been made possible. Any time another function is used, the BGM is immediately muted.

The front panel has been equipped with a microphone input. This can be utilised for both routine and urgent paging. By turning on the rear panel mic record switch, the voice over message can be recorded and can be any duration between 1 and 20 seconds.
