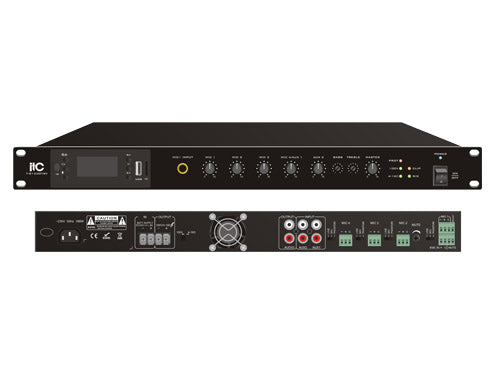

T-B120DTBV T-B240DTBV T-B350DTBV T-B500DTBV Digital Mixer Amplifier with MP3 Tuner Bluetooth (Phoenix Mic Input, with 24VDC)

Description:

Mixer amplifier build-in MP3/TUNER/Bluetooth, is used for small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, leisure cafes, etc.

Features:

• Standard rack mounted design (1U), compact SMT process design.
• With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.
• Support mp3/TUNER/Bluetooth remote control function.
• 1 EMC input, 2 AUX inputs, 4 MIC inputs.
• Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
• Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
• MIC1-4 supports balanced input, built-in 48V phantom power.
• The machine is equipped with level indication, overload and protection indicator.
• The device has good self-protection such as short circuit, overload and overheating protection.
• Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
• The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
• Support standby DC 24V without delay switching.

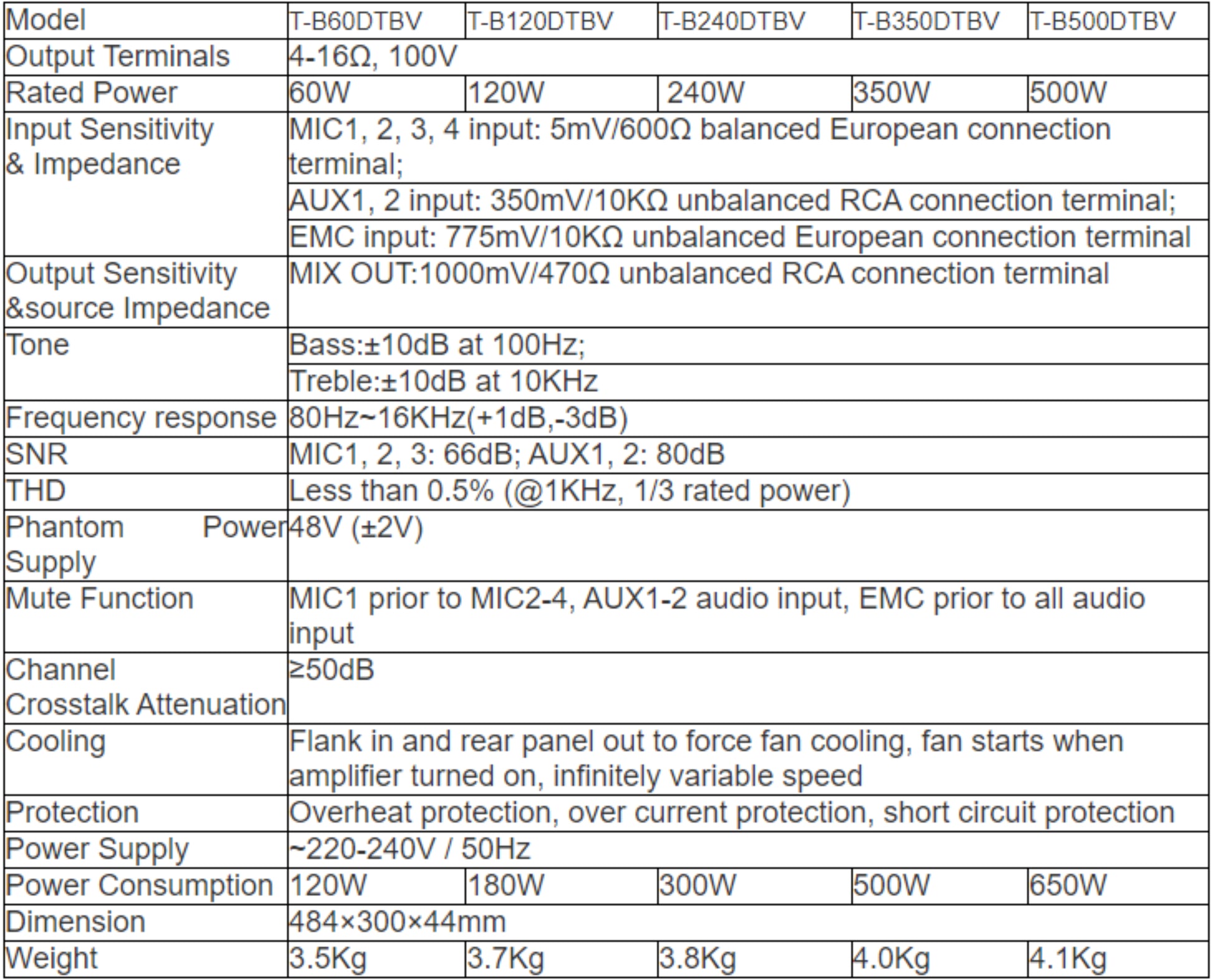

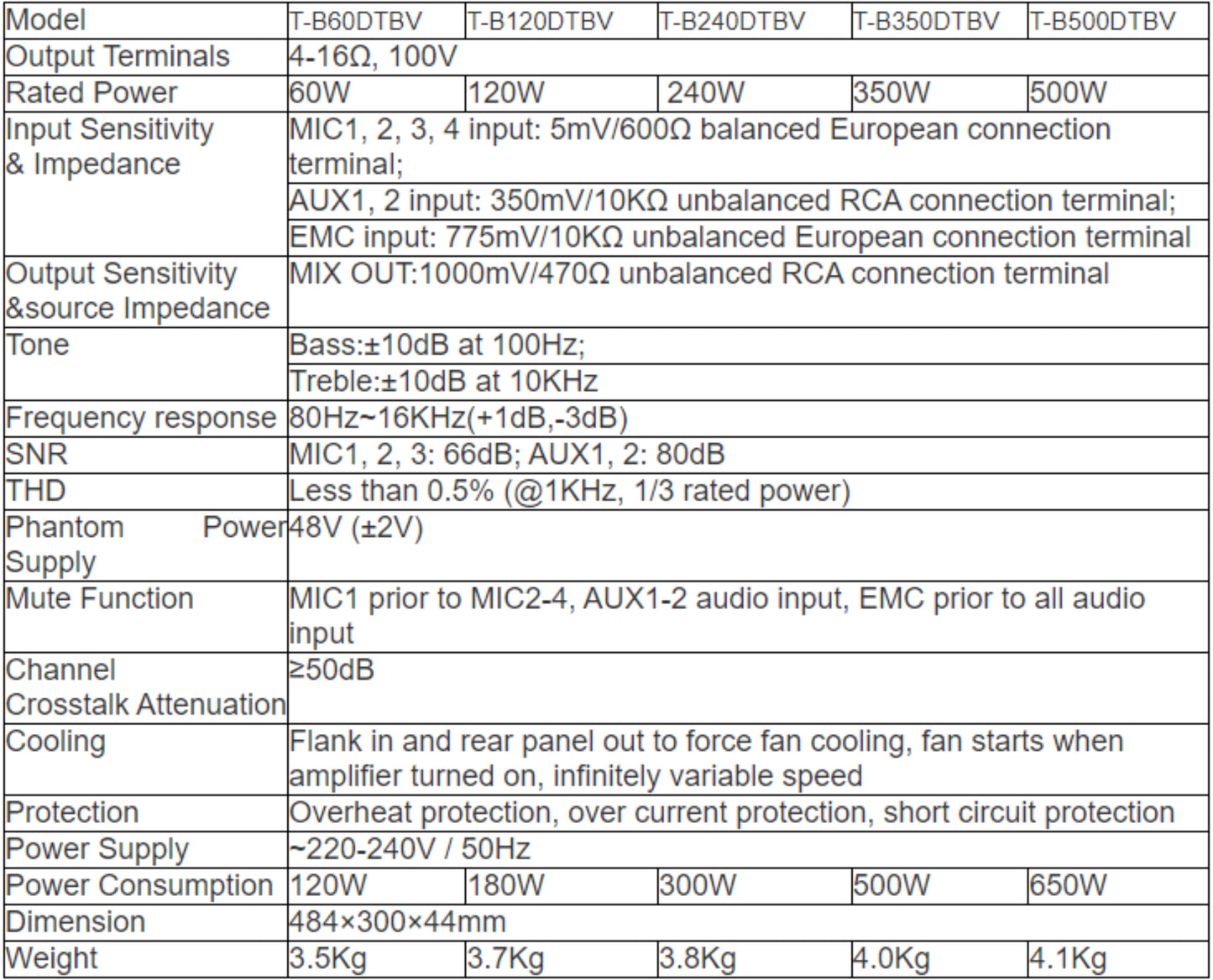

Specifications:
