T-8S02 Mixer Pre- Amplifier (8 Inputs & 2 Outputs)

Features:

• * Standard machine cabinet type 1 U height design, black aluminum oxide draw bench panel.
• * With 8 inputs interface which can be converted independently, adopting European style terminals.
• * Double bus design with main channel/ aux channel output selector.
• * One independent Aux input interface, adopt European style terminals.
• * Multi-channel audio sources mixed into public output directly, adopt balanced input and output.
• * With line and mic selector switch for each channel, output to AUX connector.
• * Each input channel with gain adjustment, input with low cut filter.
• * Each channel with independent control knob input level.
• * With phantom power switch, power supplied to condenser microphone.
• * Knob is independently controlled in main output and auxiliary output.
• * Main output is equipped with voltage limit which is with by-pass switch, threshold value and ratio value and can be controlled.
• * With LED output indicator on panel, and with earphone output function.

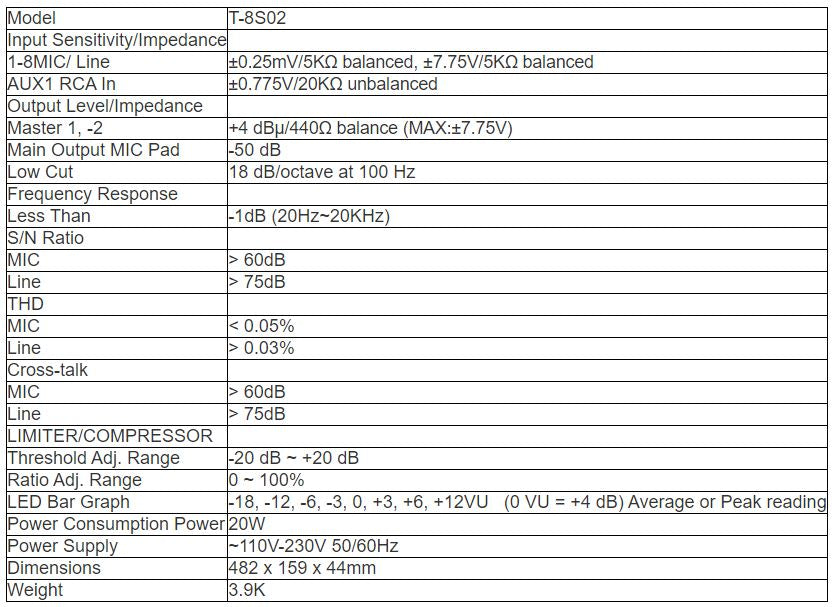

Specifications:
