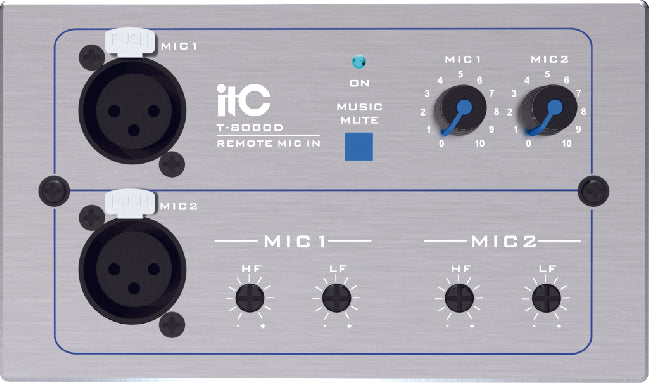

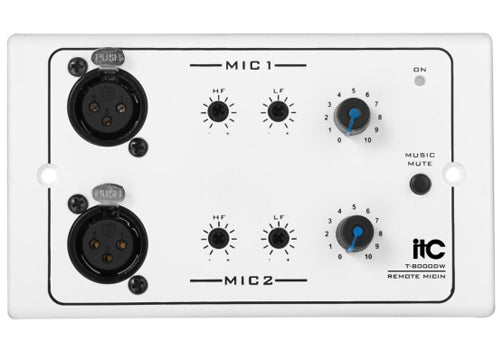

T-8000D (Grey & Aluminum) T-8000DW (White & ABS)Remote MIC Input Module

Features:

• * The T-8000D remote microphone input module is connected with T-8000 through universal industrial standard CAT 5 where a remote location announcement is needed.
• * Two different options: T-8000D of aluminum material in grey color and T-8000DW of ABS material in white color.
• * Each controller provides eight RJ45 ports for the remote module.
• * The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
• * The remote module family also has T-8000B and T-8000C.
• * Two remote mic by XLR inputs with volume control and bass, treble tone controls.
• * A paging priority override music button is provided when a remote paging is needed.
• * DC 24V power supply from controller, low power consumption 5W.
• * Extra DC 24V power supply is needed when communication distance is more than 50 meters.
• * Analog to digital conversion working principle to adjust controller's volume.
• * Metal mounting box is supplied.

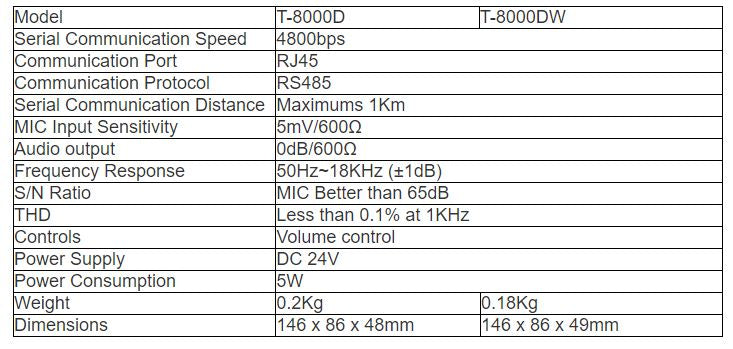

Specifications:
