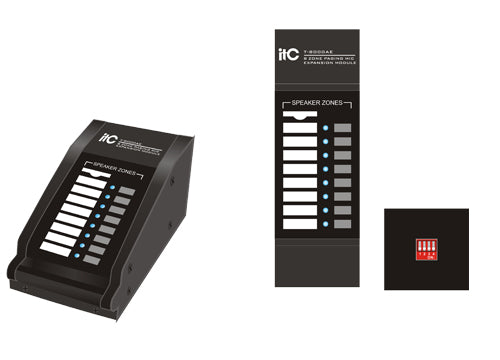

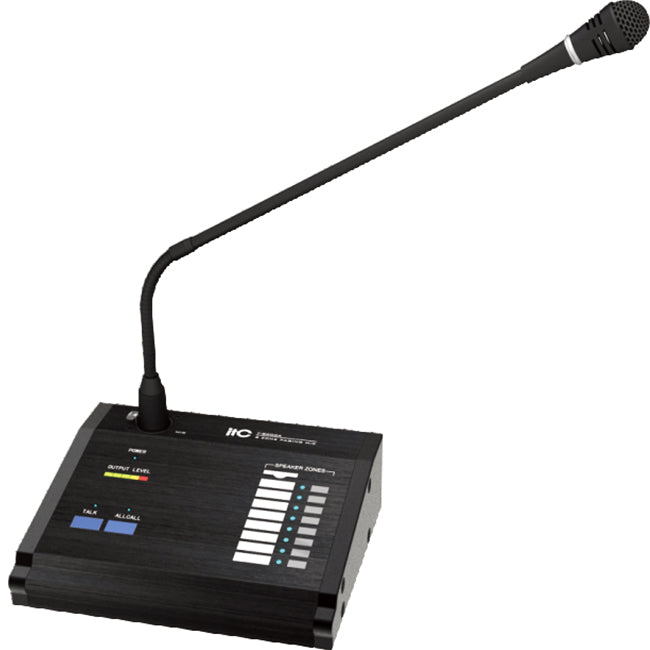

T-8000A Remote Paging Console T-8000AE Extension Control Keypad

Features：

• * The T-8000A remote paging console is connected with T-8000 through universal industrial standard CAT 5 for zone announcement or communication at a remote and different location from the control center.
• * Each controller provides four RJ45 ports for the remote paging console.
• * The CAT 5 wiring is not only featured of cost-effective, convenient layout, but alsointegration of RS 485 communication and audio transmission together.
• * Extra DC 24V power supply.
• * Eight zone selector with state indication.
• * Talk and all zone paging swift keys are provided.
• * 2 and 4 tones chimes with selector and off switch.
• * Volume controls are provided for chime and microphone.
• * Full indications includes individual zone, all zone, busy, paging, power, output level to provide a direct visualization.

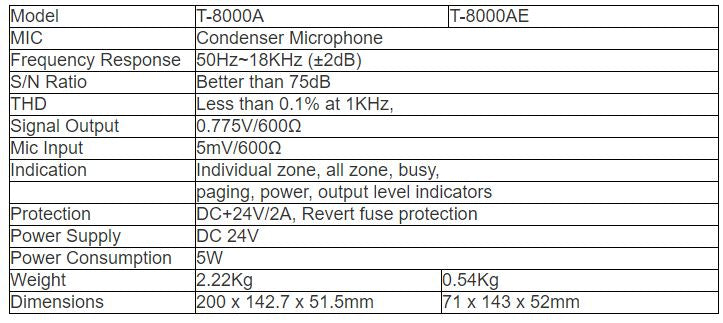

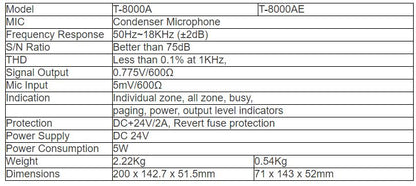

Specifications：
