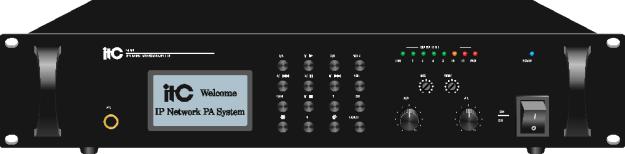

T-6700 Series IP Network Adapter T-6760 (60W, 2U) T-67120 (120W, 2U) T-67240 (240W, 3U) T-67350 (350W, 3U) T-67500 (500W, 3U)

Description:

Public address systems with built-in amplifiers that are frequently installed in weak-current rooms or branch control rooms are utilised for public address in hallways, corridors, and outdoors.

Features:

• * Standard 19-inch rack design, human-based handle, black aluminium panel, elegant and opulent style.
• * 3.4-inch screen, 16 buttons made of industrial-grade metal, excellent anti-jamming ability, and avoid unstable infrared operation.
• * Utilise DSP audio processing and embedded computing technologies; high-speed chips reduce startup time to under a second.
• * A 16-bit stereo CD audio stream can be transmitted using the built-in one-channel network hardware audio decoding module, which supports TCP/IP, UDP, and IGMP.
• * Built-in Hi-Fi analogue amplifier with outputs of 60 W, 120 W, 240 W, 350 W, and 500 W at 4 to 16 volts.
• * Support for paging without a network is provided by one AUX and one MIC input, each with independent volume, treble, and bass controls.
• * One EMC input with the greatest priority for emergency audio signal input.
• * One AUX output; use an external amplifier to connect; industrial connections fixed with screws to guarantee reliable connection.
• * One three-wire volume with relay input, compatible with both three- and four-wire wire fire breaks, no need for a 24V power source, and no maximum number of volume controls.
• * Power amplifiers include built-in intelligent power management that turns them on automatically when an audio signal is input and turns them off when there is no audio signal input. This function can be programmed to work.
• * Support for preset mute level decrease and background music.
• * Provide remote on-demand support. Up to 1000 unique audio grade levels are supported.
• * Built-in audio processing to support three different types of audio priority management and multi-channel signal amplification and mixing.
• * Support for DHCP, compatible switches, routers, modems, bridges, 2G, 3G, 4G, multicast, unicast, and other technologies.
• * Support for at least three different types of high security authorisation, with a higher safety factor than Web remote configuration.
• * Configured the user name and password and authorised the operation allowance in the control centre;
• * IOS menu administration.
• * Support breakpoint play for digital audio playback to maintain synchronisation.
• * Voice prompt for Sign-in when new configuration.
• * Support SMS voice broadcast and PSTN phone broadcast.
• * Support wireless remote controller and mobile WIFI on demand.
• * Support on-demand remote extension of the serial port, programme selection, and volume control.
• * Built-in anti-thunder processing circuit, 15KVESD protection support.
• * A redundant 24V dual power supply is an option.
• * Display of status indicators, including standby, protect, and level indicators.
• * One channel for downloading the serial port's IP address from the PC and changing the IP address of the decoding module.
• * Digital, easy to expand, unrestricted by geography, and requiring no additional administration tools
• structure without cords, simple installation.
• * Green and compliant with international standards with standby power less than 3W.

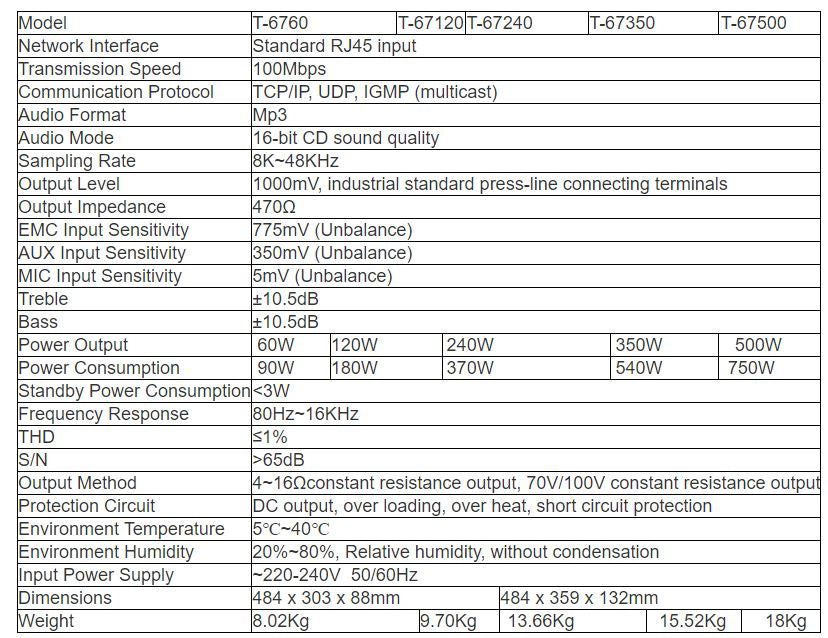

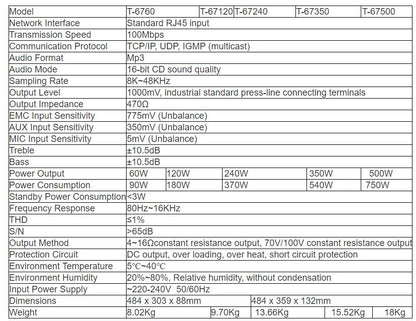

Specifications:
