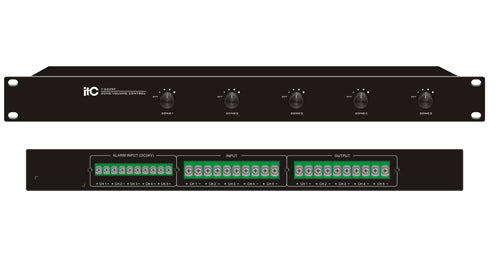

T-6239F 5-Channel Volume Control with Relay

Features：

• * 5 channel separate volume control.
• * Rack mounted design in 1U height.
• * Override feature is provided to disable the volume control settings in case of an Emergency.

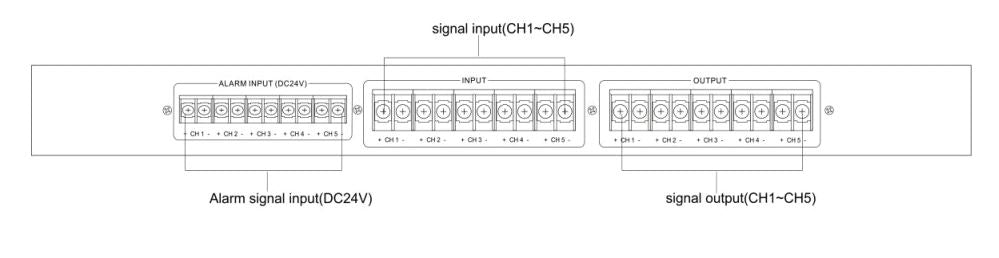

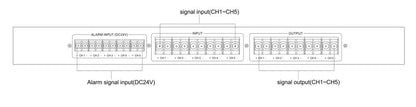

• * 5 channels inputs and outputs.
• * 5 independent channels, 200 watts per channel, total 1000W control capacity.
• * 5 steps attenuation.
• * Convenient and fast remote control the zone volume.
• * Frequency response from 100 Hz to 16 KHz while distortion less than 1.5dB.
• * DC 24V relay.

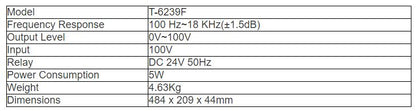

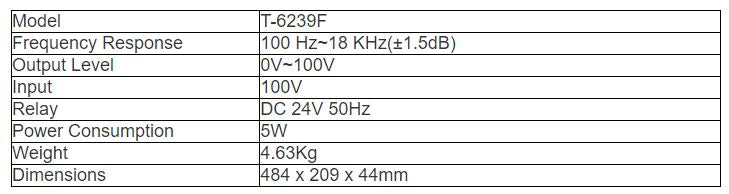

Specifications：
