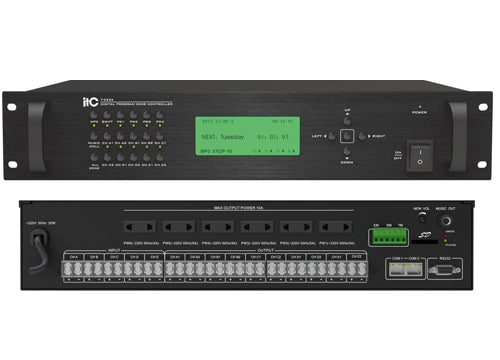

T-6232 Intelligent Control Host

Features:

• * Built-in weekly timer, monitor, 10 zone speaker selector, 6 channel power sequencer and Mp3 player.
• * Expandable from 10 zones to 160 zones.
• * Single Scheduled background music + 160 zone paging + multi voice alarm system.
• * Single scheduled background music from T-6232 weekly timer's built-in MP3 player.
• * 3 modes of voice alarm: all zones, separate zone and neighboring zones voice alarm.
• * Max support connecting 16 pcs zone selector T-6212(A).
• * 5 amp inputs, 10 zones speaker output.
• * Timely broadcast is up to 99 program sources.
• * Broadcast modes: random, repeat and circle.
• * 8 regular programs and 1 spare program for emergency/particular circumstance.
• * Functional swift key for internal MP3 player priority manual broadcast.
• * Zone 1-10 selector, all zone selector, music/paging switch, MP3 swift button, swift program button, power control channel 1-4 buttons, up/down/left/right/ok button.
• * External power control, external monitor, speaker fault detection and amplifier fault changeover all are optional could be added.
• * Power handling 500W over each zone.
• * System communication is through CAT 5 cable.
• * The system communication distance is up to 1km.
• * Support memory function in case of power off.

Optional:

• * Panel with/without handhold.

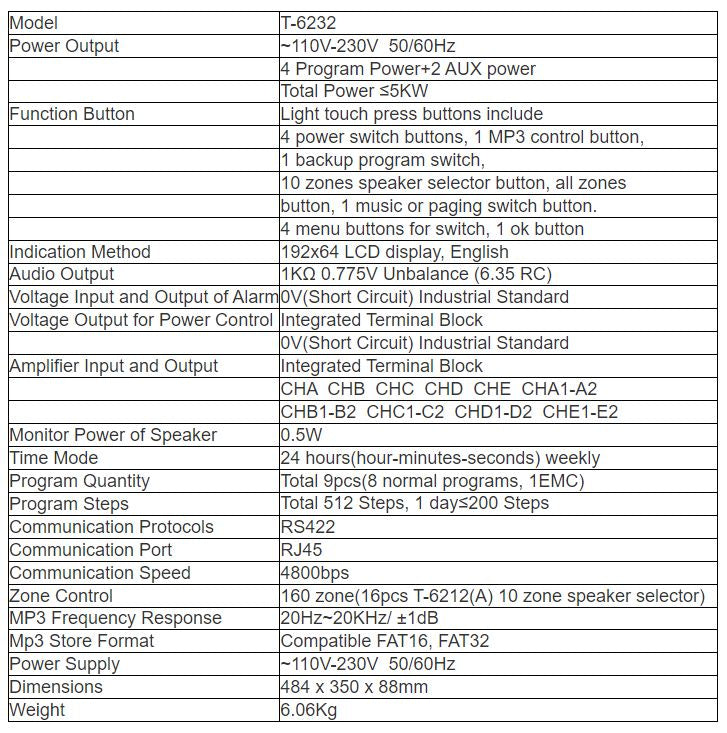

Specifications:
