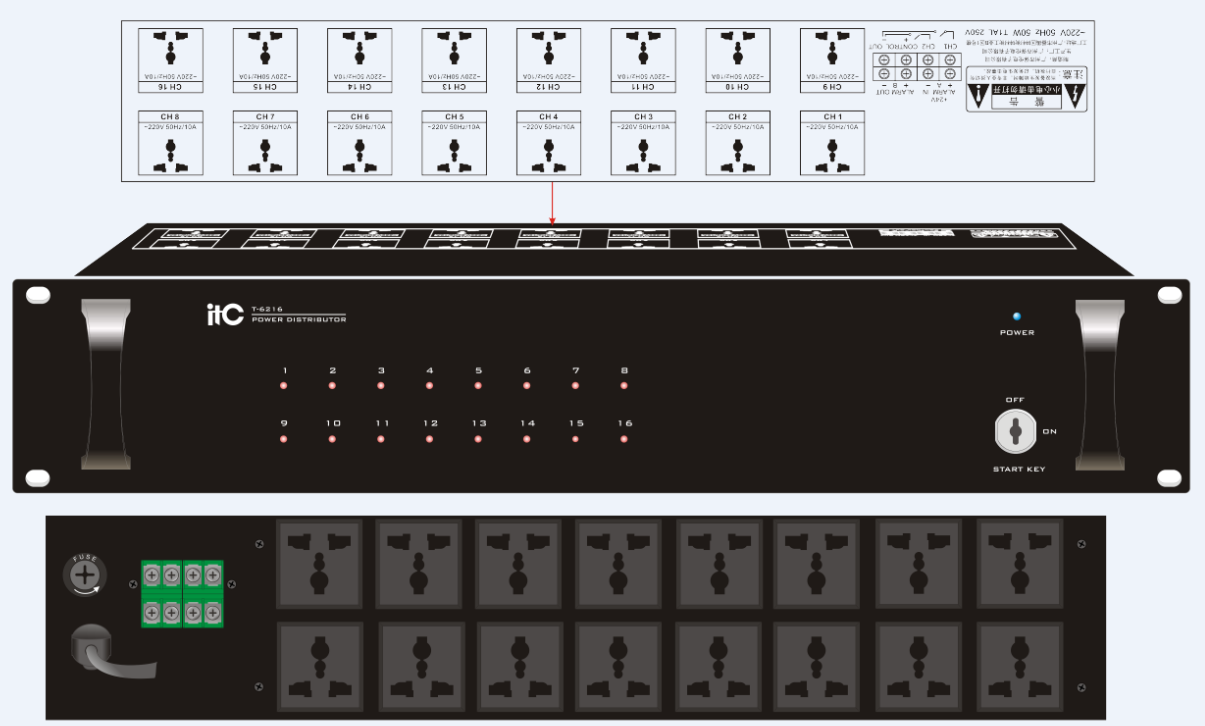

T-6216 16-Channel Power Sequencer

Features:

• * With standard chassis design and 2U aluminum alloy panel.
• * 16 power sockets connected or disconnected in turn. The time between the two way is 1S.
• * 1 input interface with 24V fire signal, 1 signal output triggered by fire short circuit emergency.
• *16 channels of power output, each channel outputs AC 220 V (10 A), and the total capacity of power socket reaches 6000 W.
• *It is equipped with electronic lock switch, which can manually control the power-off of 16 power supplies; it can also be connected with timer and intelligent controller to realize automatic control; CH1 and CH2 channels can be configured in controlled or uncontrolled state.

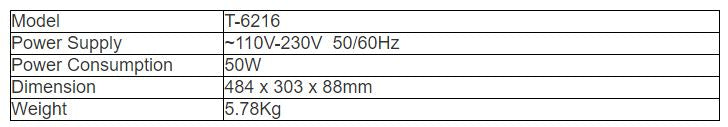

Specifications:
