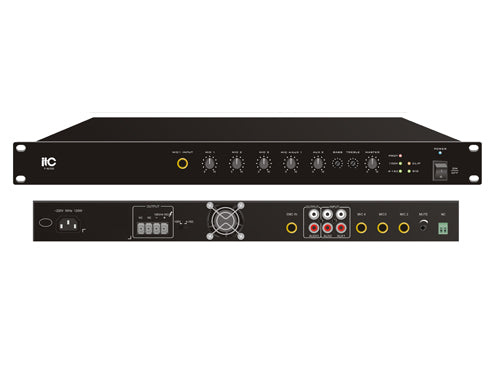

T-60D T-120D T-240D T-350D T-500D Mixer Digital Amplifier(Phone Jack Mic Input)

Description：

• Digital Mixer Amplifier.
• It is used for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.

Features:

• Standard cabinet design (1U), exquisite SMT process design.

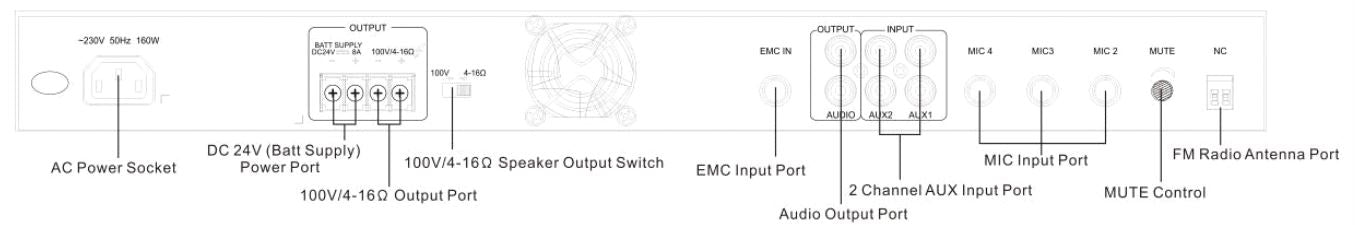

• 1 EMC input, 2 AUX inputs, 4 MIC inputs.
• Channel priority function: EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
• Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.
• The device is equipped with level indication, overload and protection indicators.
• The device has good self-protection such as short circuit, overload and overheating.
• Two output modes: 100V, 4-16Ω.
• The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
• Wide voltage supply: 180V-240V can work normally.

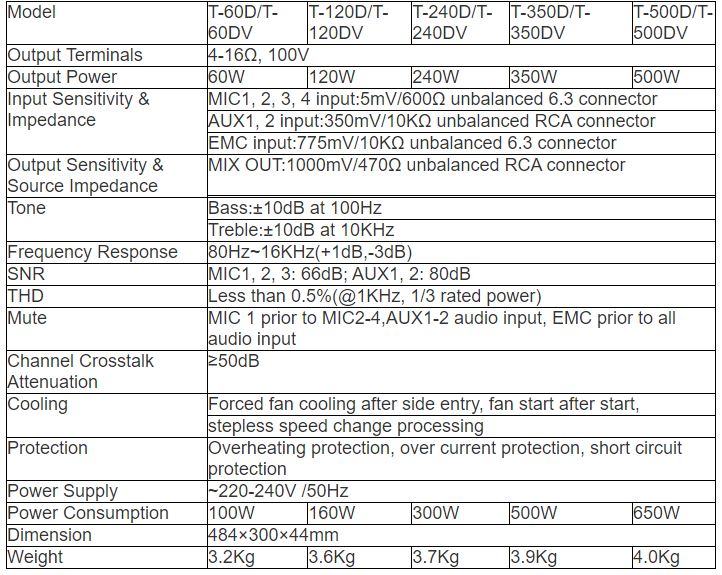

Specifications:
