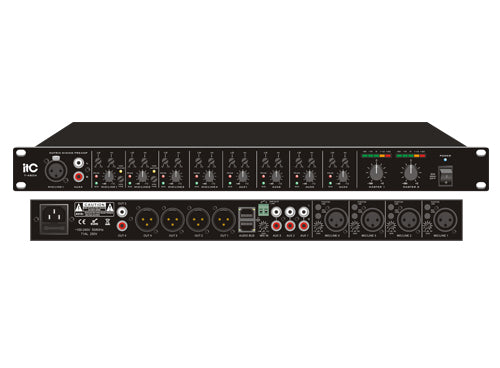

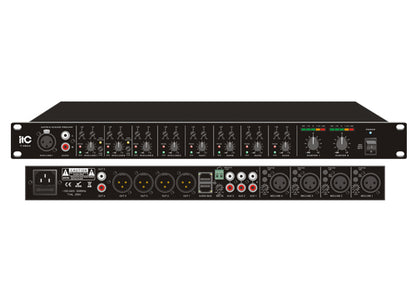

T-4S04 Stereo Mixer Pre- Amplifier (8 Inputs & 4 Outputs)

Features:

• * Standard machine cabinet type 1 U height design, black aluminuim oxide draw bench panel.
• * 4 MIC/LINE XLR balanced inputs, providing 48V phantom power switch.
• * 4 AUX accessory unbalanced inputs, there are 2 RCA in each channel,  and one of them is on the panel.
• * Each channel is equipped with volume control and tone control.
• * Signal/peak value LED light monitors the input level of every channel.
• * MIC/LINE1,MIC/LINE2 internally installed low cut.
• * Each input channel can be assigned to output channel freely through jumper.
• * The panel provides one channel of MIC/LINE input in addition,
• parallel connected with MIC/LINE1.
• * MIC1/MIC2 priority control, and adjustable threshold value.
• * 4 XLR balanced outputs, in parallel connection with 2 channels of RCA
• unbalanced outputs.
• * 4 RJ45 bus balanced inputs, whose volume is adjustable, and can be mixed correspondingly into 4 channel XLR outputs.
• * 4s of RJ45 bus balanced outputs mixed signal.
• * Output level indicate.
• * External mute controls for all channels.
• * Switching power supply provides electricity.

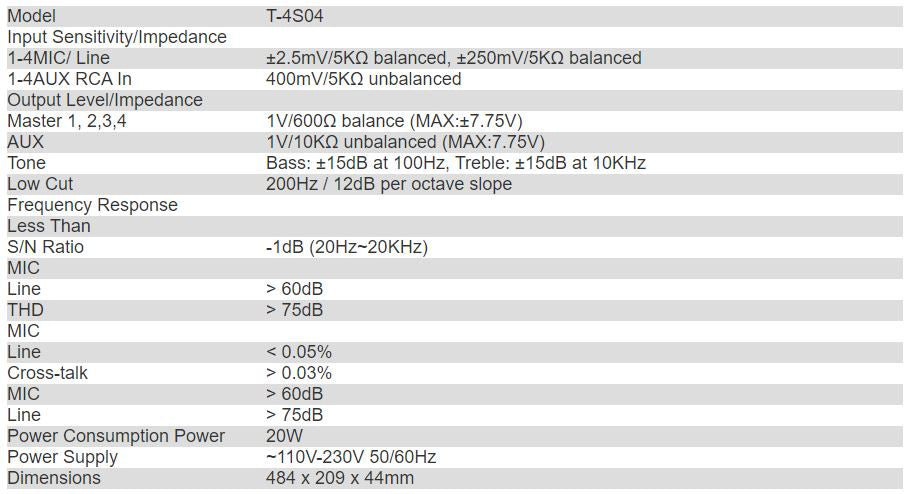

Specifications:
