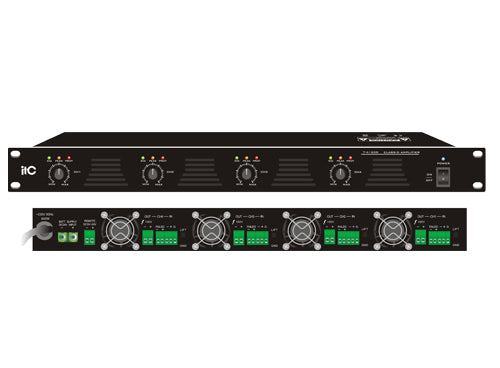

T-4120D T-4240D T-4350D T-4500D 4-Channel Class-D Power Amplifier

Features:

• * Class-D series digital power amplifier.
• * Switch power supply.
• * 85% high efficient amplifier.
• * Low power consumption and less heat generation.
• * Four channel power amplifier in 1U height.
• * RMS power output of 120W, 240W, 350W and 500W by four channels.
• * Four channel balanced line inputs by phoenix connector.
• * Four channel separate speaker outputs of 100V without transformer.
• * Four channel RJ45 ports for remote power control, volume control and status monitor.
• * Remote power on/off could be done through the RJ45 port.
• * Four channel separate volume control.
• * Built-in powered band pass filter for 80Hz to 16KHz signal.
• * Four channel separate cooling system for each channel.
• * Four channel separate status indicators include signal, peak and protection.
• * Extensive high temp, overload and short-circuit protection.
• * AC 110V or 230V and DC 24V operation.
• * Four channel separate DC 24V inputs with wide voltage protection.

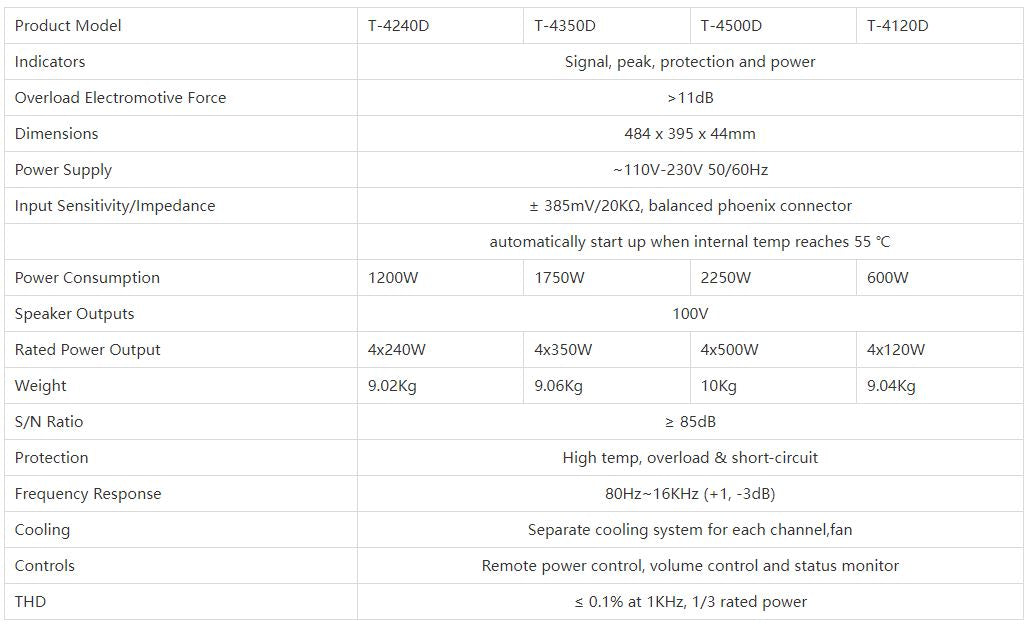

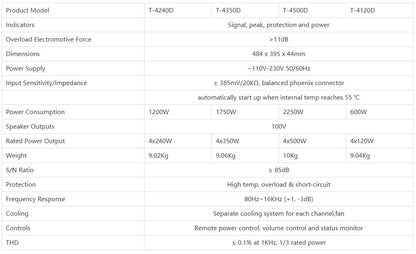

Specifications:
