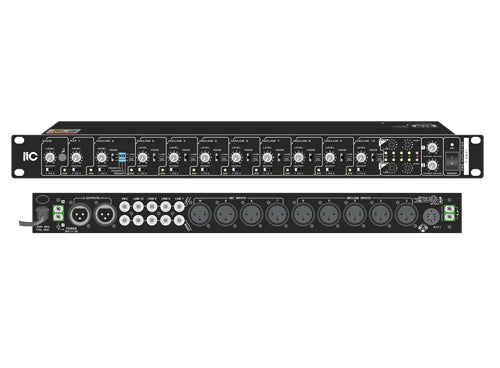

T-2S01 Pre- Amplifier

Description：

The T-2S01 pre-amplifier with multiple balanced and unbalanced microphone input options and single channel output.

Features：

• * Standard cabinet design (1U).
• * Each input has level indication.
• * Mic 2.3.4 is equipped with priority switch to select its priority level.
• * All the 10 inputs with mic, line and high pass filtering selector.
• * Reminding signal of bell when opening:

1. Optional 2-speed bell (built-in).
2. Automatic priority.
3. The bell can be controlled with the remote microphone T-319.

• * Three output signal modes can be selected (output 1, output 1+2, output 2).
• * Two sets of output are equipped with high and bass adjustment function.
• * Double channel output has independent level display.
• * Independent stereo line output with RCA interface (line 7-10).
• * With recording output function.
• * It can be used with T-319.

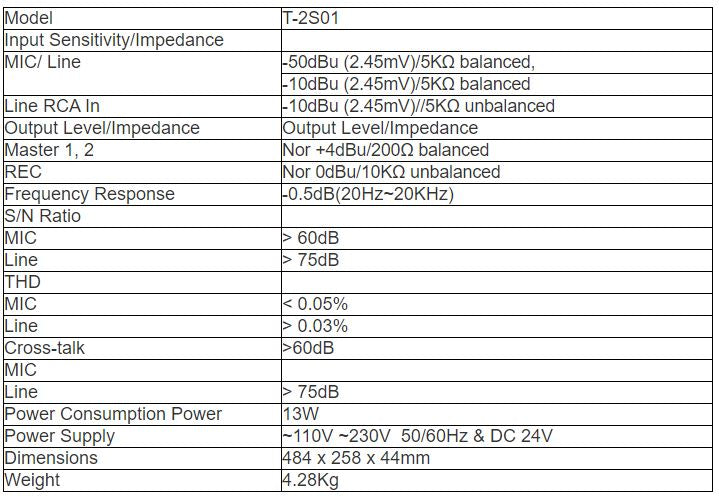

Specifications:
