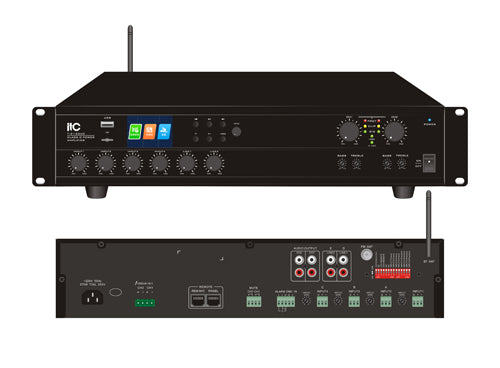

T-2120UC T-2240UC T-4120UC T-4240UC 2/4 Channel Matrix Digital Mixer Amplifier

Description:

Provide regional for power amplification PA system, it is suitable for clubs, venues, shopping malls and other places with PA system that require multi-channel high-power digital power amplifiers.

Feature:

• 120W/240W constant impedance and voltage high performance digital power amplifier (4-16Ω/100V) with 2/4 channel outputs.
• Built-in MP3 recording function.
• 6-channel independent volume control.
• 6-channel audio sources can be input to each channel output through matrix configuration.
• INPUT 1-4 with adjustable gain.
• 2/4-channel outputs support independent power amplifier tone adjustment.
• Support 4 remote microphone inputs.
• Built-in MP3 (U disk/SD card) player function.
• Built-in FM radio function.
• Adopt 2.4-inch high-grade TFT display.
• 2/4-channel outputs support the remote panel control.
• Distortion, protection, signal, output status indicator.
• INPUT 1-4 channels support phantom power.
• 1-4 Channels enjoy priority and mixing selection function.
• Enjoy priority input port of EMC alarm sound source.
• ALARM port to play the specified alarm track.
• Built-in Bluetooth function and external high-gain Bluetooth antenna to connect to mobile phones / computers.
• 2/4-channel MUTE ports can be connected to the fire control port.
• Priority: EMC>MUTE>REMOTE MIC>INPUT 1-4>LINE 1-2.

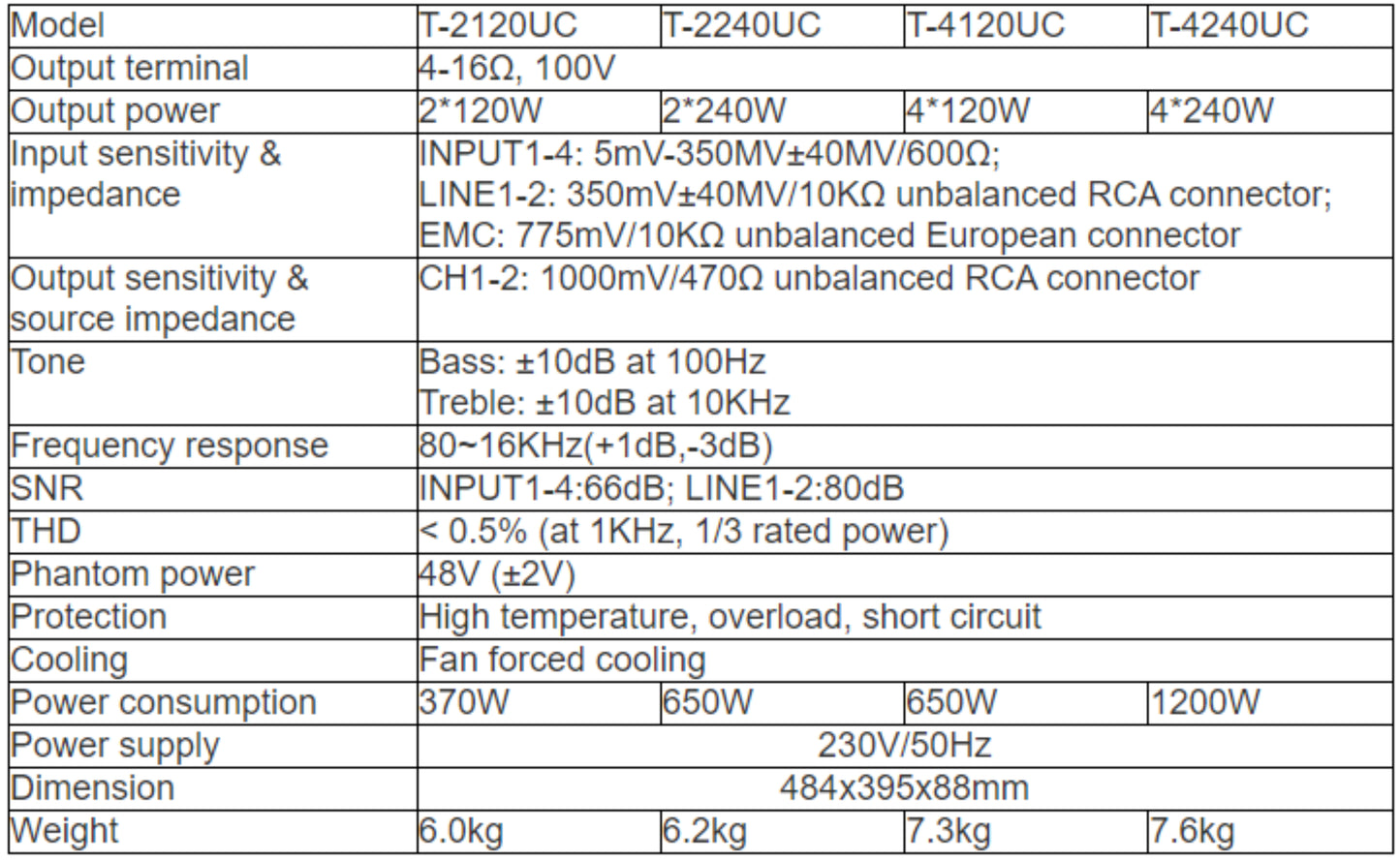

 Specification:
