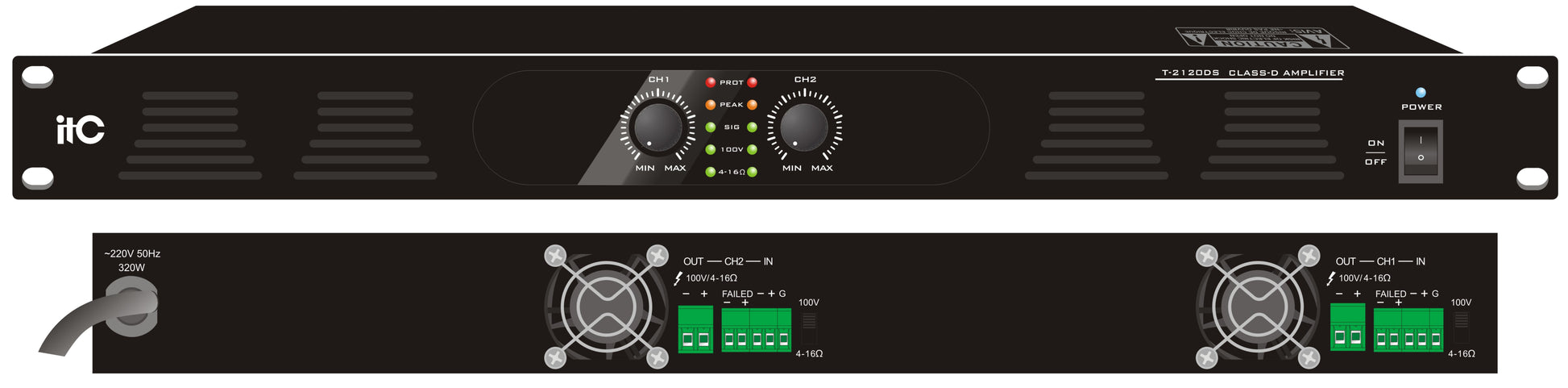

T-2120DS T-2240DS T-2350DS T-2500DS 2-Channel Class-D Amplifier

Description:

Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.

Features:

• * Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.
• * Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
• * 1U standard 19-inch industrial chassis design.
• * Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.
• * Without transformer output 100V and can switch constant resistance 4-16Ω output.
• * The fault output function can remotely monitor the working state of amplifier.
• * The product has short circuit, overload and overheat protection.
• * Support 2-channel independent power supply function.
• * 85% high-efficiency amplifier with low power loss and heat output.

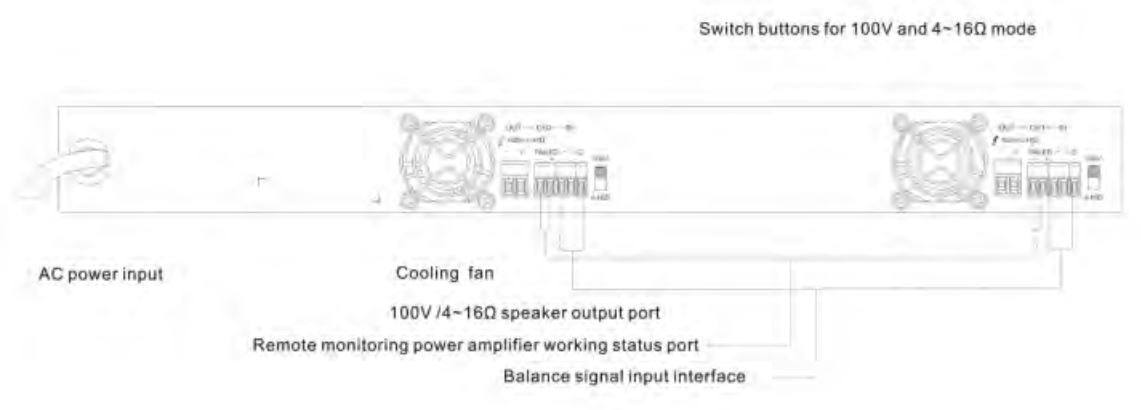

• * 2-channel European terminal balanced input and 2-channel European terminal output.

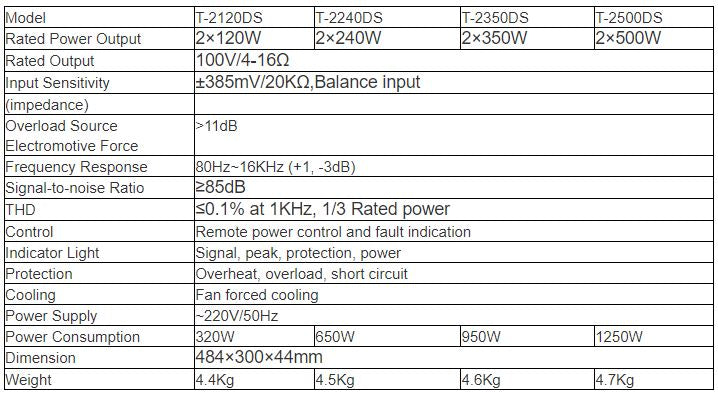

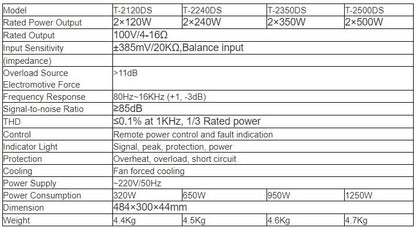

Specifications:
