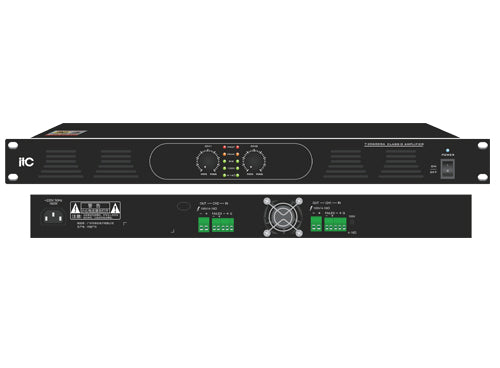

T-2060DSA T-2120DSA T-2240DSA 2-Channel Power Amplifier

Description:

Provide Zone power amplifier for broadcasting system, suitable for clubs, venues, shopping center and other broadcasting systems with multi-channel high power amplifier requirements.

Features:

• * High efficiency class D amplifier circuit and high efficiency switching power supply are adopted, making the efficiency of the whole machine up to 85%.
• * Reasonable heat dissipation layout is adopted in the interior of the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.
• * Adopt 1U standard 19-inch industrial chassis design.
• * 2 channel digital power amplifier to provide two 100V or 4-16Ω output terminal wiring speaker.
• * Not with 100V transformer output and can switch resistance between 4 and 16 Ω output.
• * Support fault output function, which can remotely monitor the working status of power amplifier .
• * The product has short circuit, overload and overheating protection function.
• * More than 85% high efficiency amplifier with low power loss and heat gain.
• * With 2-channel Euro-type balanced input and 2-channel Euro-type output.

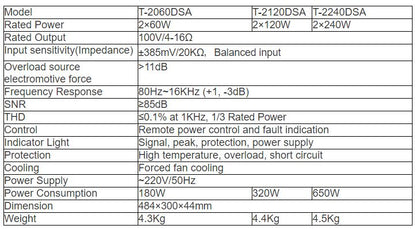

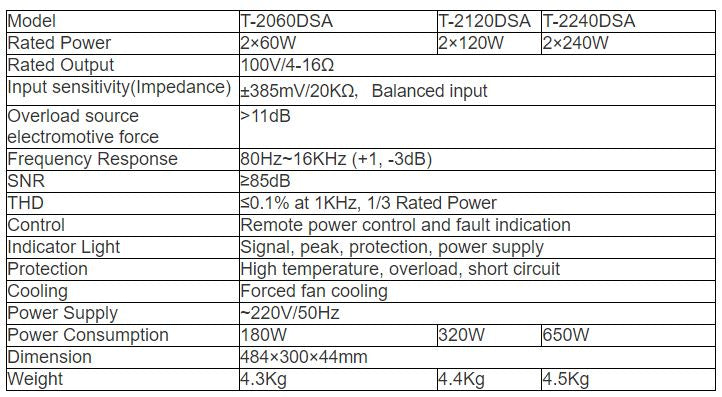

Specifications:
