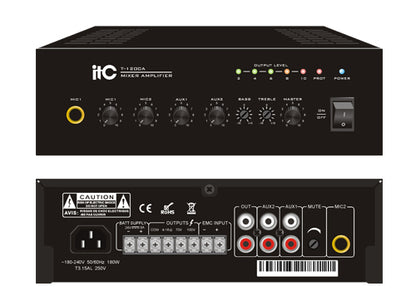

T-120CA Mini Digital Class-D Mixer Amplifier

Description:

• * Professional power amplifier with preamplifier.
• * Provide regional power amplification for the PA system, suitable for large, medium and small places of broadcasting amplification.

Features:

• * 2 microphone inputs, MIC1 has the highest priority function.
• * 2 AUX inputs, 1 EMC/TEL input.
• * 1 line output can be connected to power amplifier to expand power.
• * Each channel can independently adjust the volume.
• * With mute adjustment knob.
• * The emergency input line has the highest priority, with override function, and independent adjustment of treble and bass.
• * 2 kinds of power output modes: constant voltage output 100V, 70V; constant resistance output 4 ~ 16Ω.
• * The self-developed high-efficiency and ultra-stable half-bridge switching power supply technology is perfectly combined with the high-energy and energy-saving design of the self-improved version of the Class D power amplifier.
• * 180-240V wide power supply/24V power supply.

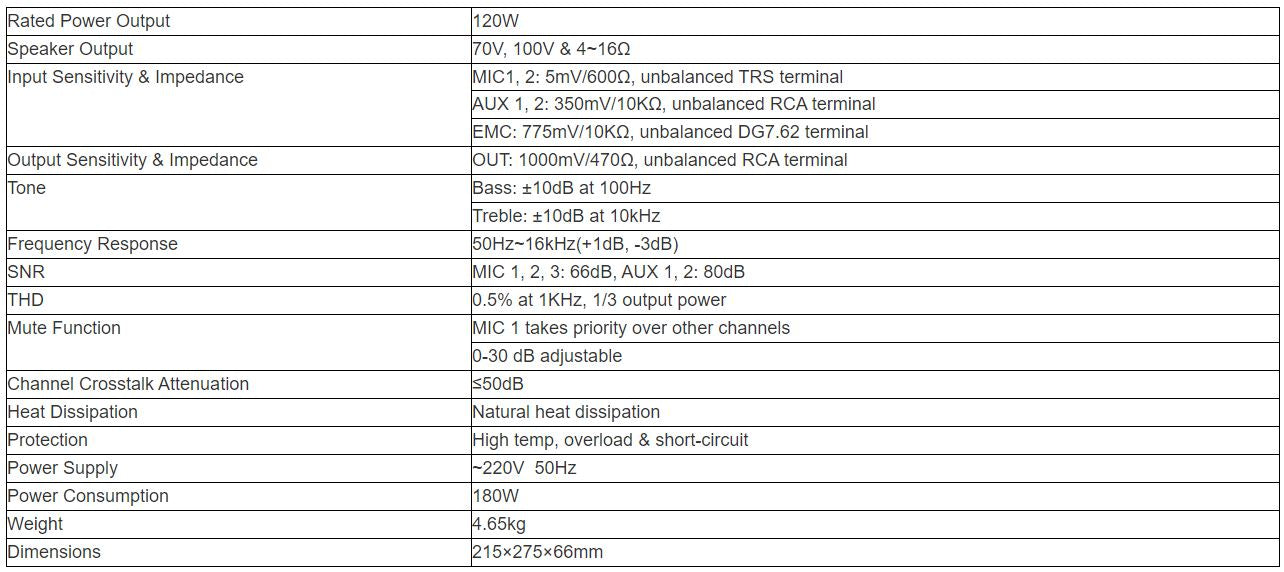

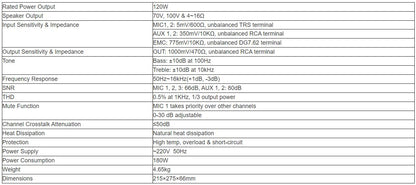

Specification:
